GlossFlakes

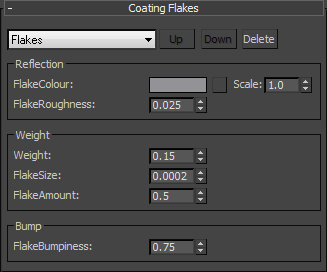

This Coating layer simulates metallic flakes that can be used in conjunction with other layers such as clearcoat to create a variety of materials. Multiple layers of GlossFlakes can be used to create complex car paint or product packaging-type materials.

Reflection

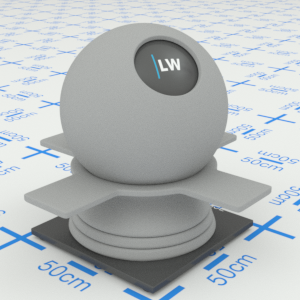

FlakeColor

Determines color of the flakes. This can be a single color value or a texture map.

Input: Map/Color

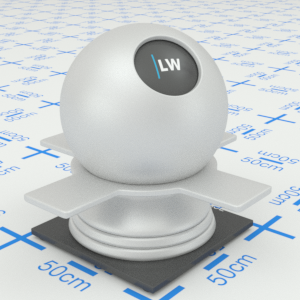

Colour: White
Colour: White
Colour: Grey
Colour: Black

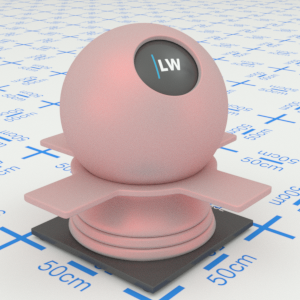

Colour: Red
Colour: Red

Click material thumbnail for larger view

FlakeRoughness

Simulates the level of polish. Higher values will make the reflections appear more blurred.

Range: 0.0 - 1.0

FlakeRoughness: 0.0
FlakeRoughness: 0.0
FlakeRoughness: 0.0
FlakeRoughness: 0.1

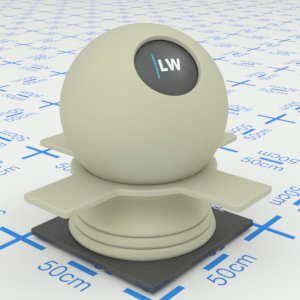

FlakeRoughness: 0.5
FlakeRoughness: 0.5

Click material thumbnail for larger view

Weight

Weight

Determines the maximum reflectivity of the flakes. This effectively controls the weight of the layer relative to the underlying material. If you are using multiple GlossFlakes layers, this parameters should be less than 1.

Range: 0.0 -

Weight: 0.1
Weight: 0.1
Weight: 0.5
Weight: 0.5
Weight: 1.0
Weight: 1.0

Click material thumbnail for larger view

FlakeSize

Determines the size of the flakes. Higher values result in bigger flakes.

FlakeSize: 0.1
FlakeSize: 0.1

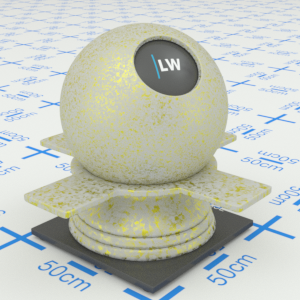

FlakeSize: 0.8
FlakeSize: 0.8
FlakeSize: 3.0
FlakeSize: 3.0

Click material thumbnail for larger view

FlakeAmount

This represents the density of flakes in the material. The higher the value, the less you will see the layers underneath.

FlakeAmount: 0.1
FlakeAmount: 0.1
FlakeAmount: 0.2
FlakeAmount: 0.2

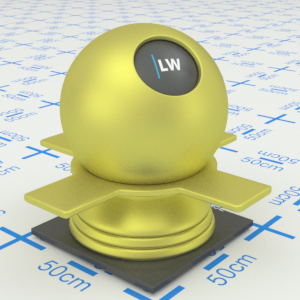

FlakeAmount: 0.5
FlakeAmount: 0.5

Click material thumbnail for larger view

Bump

FlakeBumpiness

Controls the strength of the bump map associated with the flake layer.

FlakeBumpiness: 0.0
FlakeBumpiness: 0.0
FlakeBumpiness: 1.0
FlakeBumpiness: 1.0

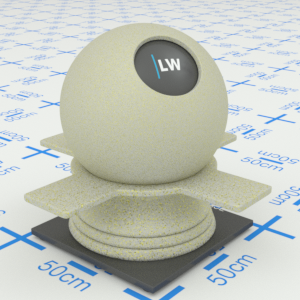

FlakeBumpiness: 5.0
FlakeBumpiness: 5.0

Click material thumbnail for larger view

Materials using GlossFlakes

Click material thumbnail for larger view

Coatings

Flakes
Flakes

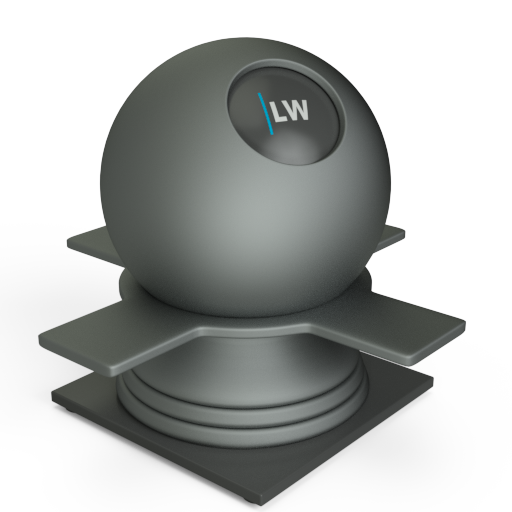

Galvanized
Galvanized
