WovenAnisotropic

This component is designed to represent fabric-type materials. Such materials are made up of threads or fibres running in two different directions, known as 'warp' and 'weft', which can each produce anisotropic glossy reflections. By increasing the transmission parameter, it is possible to simulate thin partially-translucent fabrics.

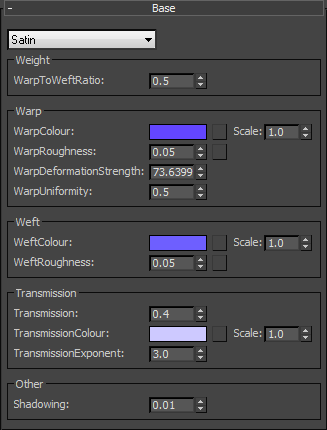

Weight

WarpToWeftRatio

Controls the relative strength of reflections from the warp versus the weft.

Range: 0.0 -

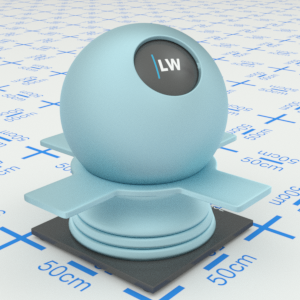

WarpToWeftRatio: 0.0
WarpToWeftRatio: 0.0
WarpToWeftRatio: 0.8
WarpToWeftRatio: 0.8

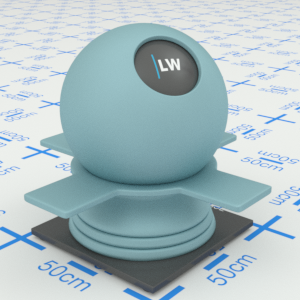

WarpToWeftRatio: 3.0
WarpToWeftRatio: 3.0

Click material thumbnail for larger view

Warp

WarpColour

Controls the color of the warp threads in the material. This can be a single color or a map.

Input: Map/Color

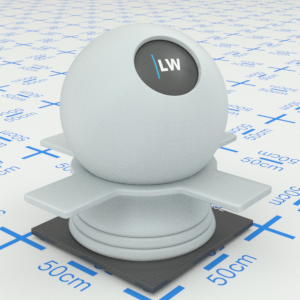

Colour: White
WarpColour: White
Colour: Grey

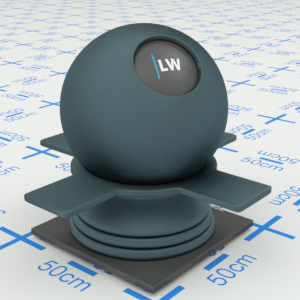

WarpColour: Black

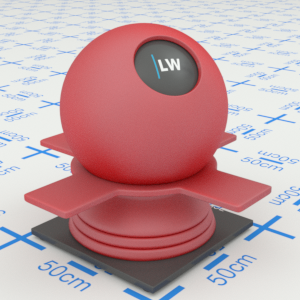

Colour: Red
WarpColour: Red

Click material thumbnail for larger view

WarpRoughness

Controls the size of the glossy highlights from the warp. Higher values will make the reflections appear more blurred.

Range: 0.0 - 1.0 or Map

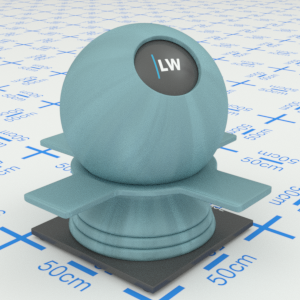

WarpRoughness: 0.0
WarpRoughness: 0.0
WarpRoughness: 0.3
WarpRoughness: 0.3

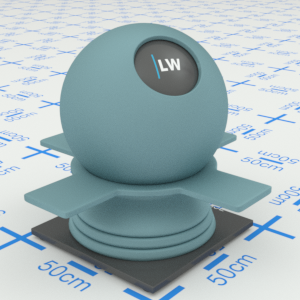

WarpRoughness: 1.0
WarpRoughness: 1.0

Click material thumbnail for larger view

WarpDeformationStrength

Controls the spacing between the anisotropic highlights from the warp.

Range: 0.0 -

WarpDeformationStrength: 0.0
WarpDeformationStrength: 0.0

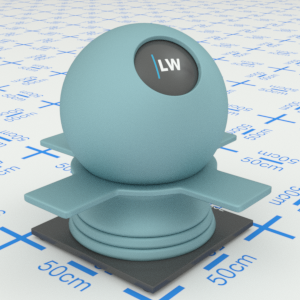

WarpDeformationStrength: 1.0
WarpDeformationStrength: 1.0

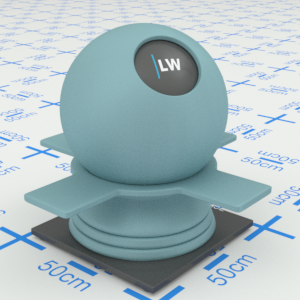

WarpDeformationStrength: 3.0
WarpDeformationStrength: 3.0

Click material thumbnail for larger view

WarpUniformity

Controls the relative strength of the inner and outer anisotropic highlights from the warp.

Range: 0.0 - 1.0

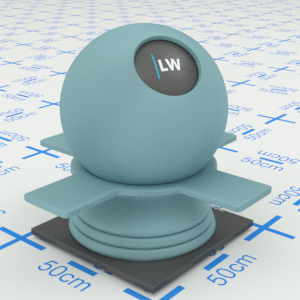

WarpUniformity: 0.0
WarpUniformity: 0.0

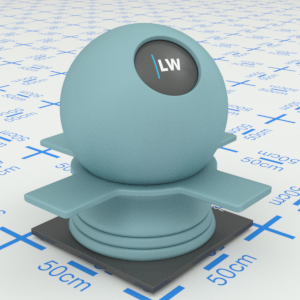

WarpUniformity: 0.5
WarpUniformity: 0.5
WarpUniformity: 1.0
WarpUniformity: 1.0

Click material thumbnail for larger view

Weft

WeftColour

Controls the color of the weft threads in the material. This can be a single color or a map.

Input: Map/Color

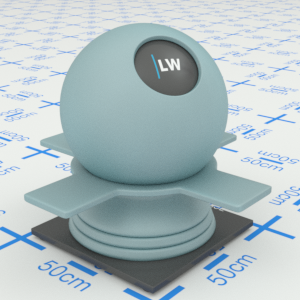

Colour: White
WeftColour: White
Colour: Grey

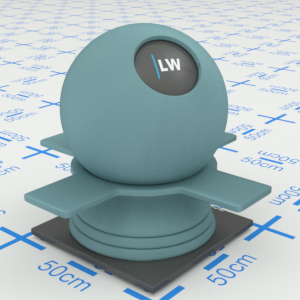

WeftColour: Black

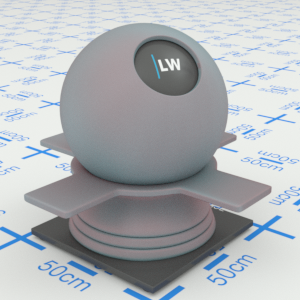

Colour: Red
WeftColour: Red

Click material thumbnail for larger view

WeftRoughness

Controls the size of the glossy highlights from the weft. Higher values will make the reflections appear more blurred.

Range: 0.0 - 1.0 or Map

WeftRoughness: 0.0
WeftRoughness: 0.0

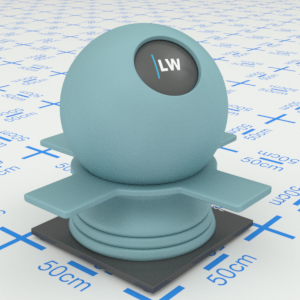

WeftRoughness: 0.2
WeftRoughness: 0.2

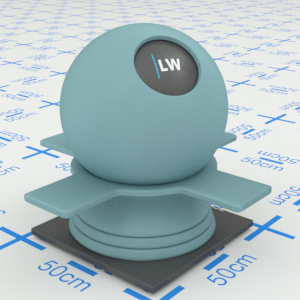

WeftRoughness: 0.8
WeftRoughness: 0.8

Click material thumbnail for larger view

Transmission

Transmission

Controls the maximum amount of light that passes through the material.

Range: 0.0 - 1.0

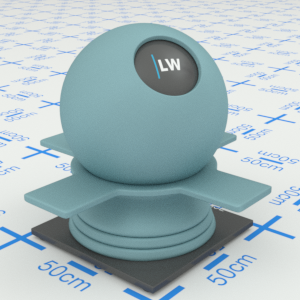

Transmission: 0.1
Transmission: 0.1
Transmission: 0.5
Transmission: 0.5

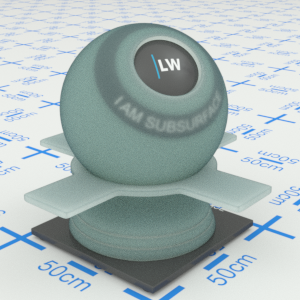

Transmission: 0.8
Transmission: 0.8

Click material thumbnail for larger view

TransmissionColour

Controls the color of the transmitted light.

Input: Map/Color

Colour: White
TransmissionColour: White
Colour: Grey

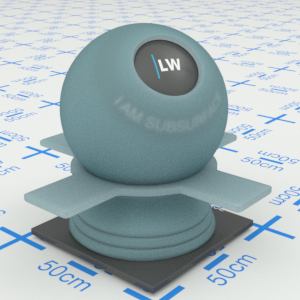

TransmissionColour: Black
Colour: Red

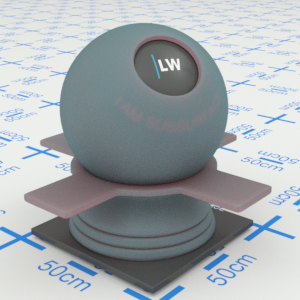

TransmissionColour: Red

Click material thumbnail for larger view

TransmissionExponent

Controls how quickly the transmission of the material changes as you move across the surface. The maximum amount of light is transmitted when the material is viewed straight on. The transmission falls to zero when the material is viewed from a very shallow angle.

Range: 0.01 - 25.0

TransmissionExponent: 0.3
TransmissionExponent: 0.3

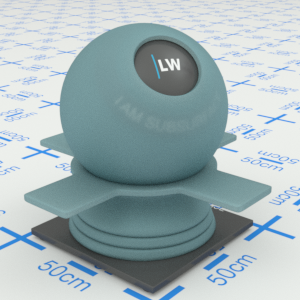

TransmissionExponent: 1.0
TransmissionExponent: 1.0
TransmissionExponent: 3.0
TransmissionExponent: 3.0

Click material thumbnail for larger view

Other

Shadowing

Increasing this parameter will make the material appear darker when it is viewed from shallow angles.

Range: 0.0 - 1.0

Shadowing: 0.0
Shadowing: 0.2
Shadowing: 0.5
Shadowing: 0.5
Shadowing: 1.0
Shadowing: 1.0

Materials using WovenAnisotropic

Click material thumbnail for larger view

Base

Satin

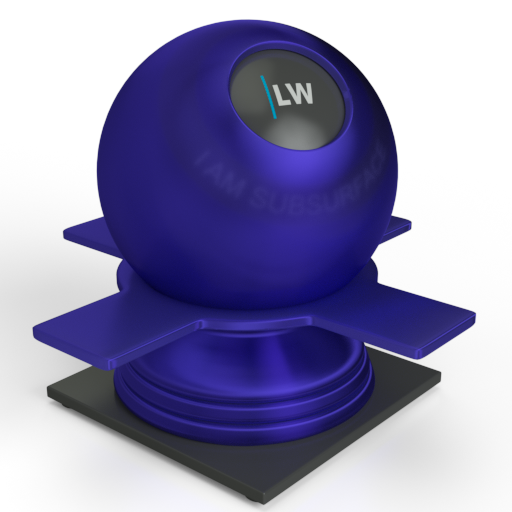

Satin
