The Iray+ Perlin Noise map generates a pseudo-random pattern consisting of waves across the map. It is computed over several octaves which are added together for the final result. It has many uses but primarily it is used for generating procedural textures, shapes, terrain height maps and as the basis for texture effects.
The noise blends between these two colors. These parameters will have no effect if connected to a Normal/Bump parameter.
Input: Color
The size of the features in the noise pattern.
Input: 0 – 1000
Click material thumbnail for larger view
This modifies the pattern with a marble appearance. Can be used in combination with Apply Dent and Absolute Noise for more complex effects.
Input: On/Off Checkbox
Click material thumbnail for larger view
Intensifies the contrast between the colors but the pattern will stay the same. Can be used in combination with Apply Marble and Absolute Noise for more complex effects.
Input: On/Off Checkbox
Click material thumbnail for larger view
When enabled, the pattern will appear more billowing and turbulent.Can be used in combination with Apply Marble and Apply Dent for more complex effects.
Input: On/Off Checkbox
Click material thumbnail for larger view

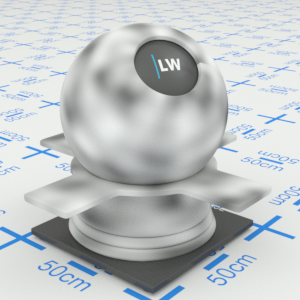

This can be used as a time control, in conjunction with 3ds Max key frames to simulate progression of the noise over time.
Input: 0 – ∞
Click material thumbnail for larger view
Controls the number of additional noise functions (octaves) to sample.
Input: 0 – ∞
Click material thumbnail for larger view
The weight of additional noise turbulence.
Input: 0 – ∞
Click material thumbnail for larger view
Noise values greater then "NoiseThresholdLow" are mapped to "Colour 2"
Input: 0 – ∞
Click material thumbnail for larger view

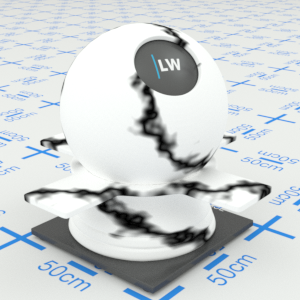

Noise values greater than "Noise Threshold High" are mapped to "Colour 1"
Input: 0 – ∞
Click material thumbnail for larger view
This creates a "tree ring" like effect
Input: 0 – ∞
Click material thumbnail for larger view
