Iray+ Worley Noise

Iray+ Worley Noise, also known as Cell Noise, is a texture built by calculating the distance between randomly distributed points. This produces a pattern similar to clusters of cells, and can be used as an alternative to the Iray+ Perlin Noise map to generate texture effects and procedural textures.

Parameters

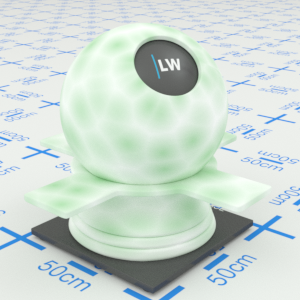

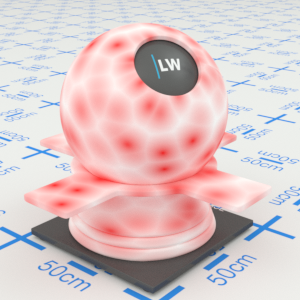

Color1

The noise blends between these two colors. These parameters will have no effect if connected to a Normal/Bump parameter.

Input: Color

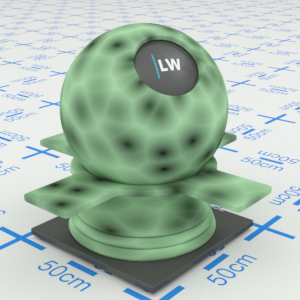

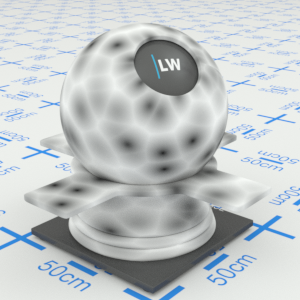

Color 1 + 2

The noise blends between these two colors. These parameters will have no effect if connected to a Normal/Bump parameter.

Input: Color

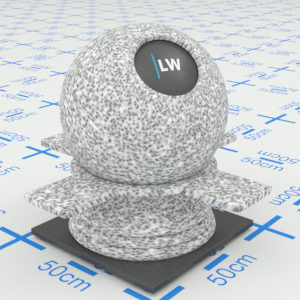

Size

The size of the features in the noise pattern.

Input: 0 – 1000

Click material thumbnail for larger view

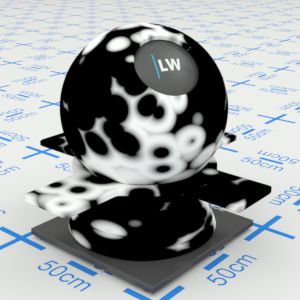

Apply Marble

This modifies the pattern with a marble appearance. Can be used in combination with Apply Dent and Absolute Noise for more complex effects.

Input: On/Off Checkbox

Click material thumbnail for larger view

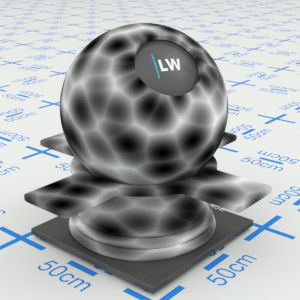

Apply Dent

Intensifies the contrast between the colors but the pattern will stay the same. Can be used in combination with Apply Marble and Absolute Noise for more complex effects.

Input: On/Off Checkbox

Click material thumbnail for larger view

NoiseDistortion

The weight of additional noise turbulence.

Input: 0 – ∞

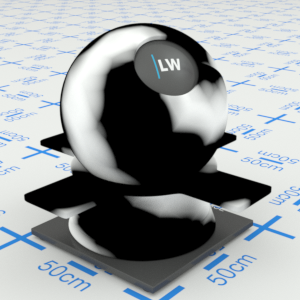

NoiseDistortion: 1.0 1.0 1.0 — NoiseDistortion: **1.0, 1.0, 1.0**

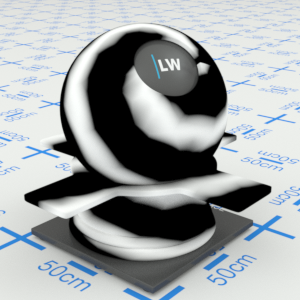

NoiseDistortion: 1.0 2.0 1.0 — NoiseDistortion: **1.0, 2.0, 1.0**

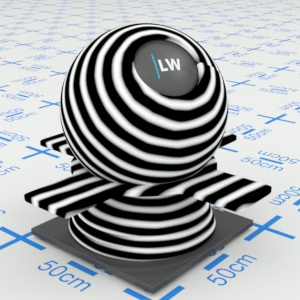

NoiseDistortion: 3.0 9.0 0.0 — NoiseDistortion: **3.0 9.0 0.0**

Click material thumbnail for larger view

NoiseThresholdLow

Noise values greater then "Noise Threshold Low" are mapped to Colour2

Input: 0 – ∞

NoiseThresholdLow: 0.0 — NoiseThresholdLow: **0.0**

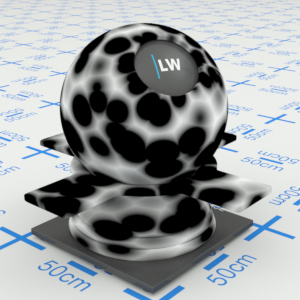

NoiseThresholdLow: 0.5 — NoiseThresholdLow: **0.5**

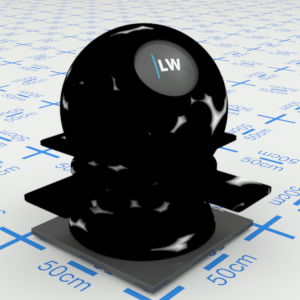

NoiseThresholdLow: 0.8 — NoiseThresholdLow: **0.8**

Click material thumbnail for larger view

NoiseThresholdHigh

Noise values greater than "Noise Threshold High" are mapped to Colour1

Input: 0 – ∞

NoiseThresholdHigh: 1.0 — NoiseThresholdHigh: **1.0**

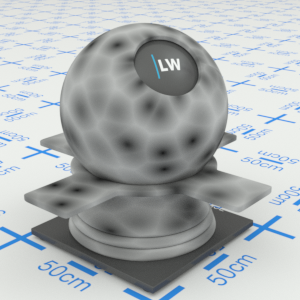

NoiseThresholdHigh: 2.0 — NoiseThresholdHigh: **2.0**

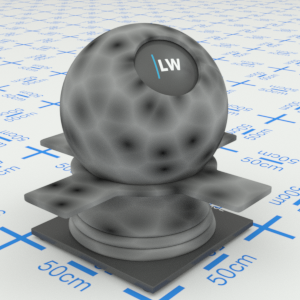

NoiseThresholdHigh: 3.0 — NoiseThresholdHigh: **3.0**

Click material thumbnail for larger view

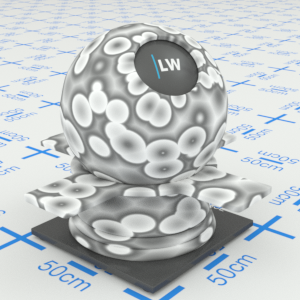

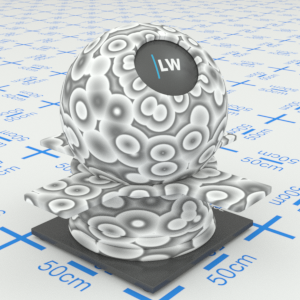

Noise Bands

This creates a "tree ring" like effect

Input: 0 – ∞

Click material thumbnail for larger view

✱ Note: The FlipTangent checkboxes on a geometry component's Normal parameter will not function if a Noise or Bump map is attached, only Normal maps will be affected.

▲
